1：Keywords:

Programmable automation equipment

Meet the production needs of batteries with different specifications and quality levels

Rapid production

2：Product Introduction:

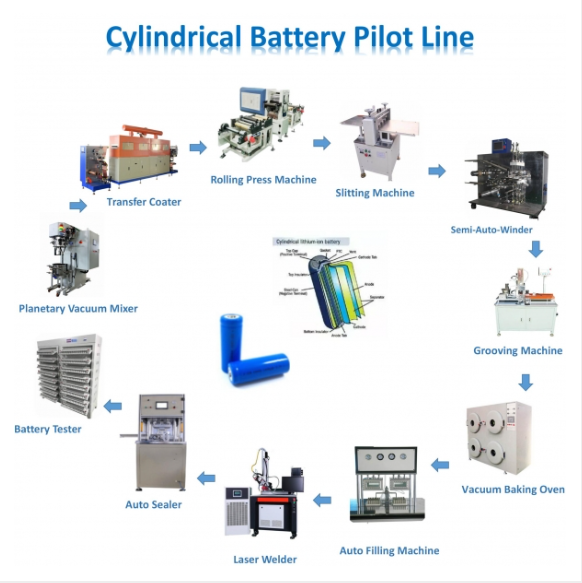

The cylindrical lithium battery experimental pilot line is a key equipment used for researching and developing the production technology of cylindrical lithium batteries, mainly for the preliminary production and testing of batteries.

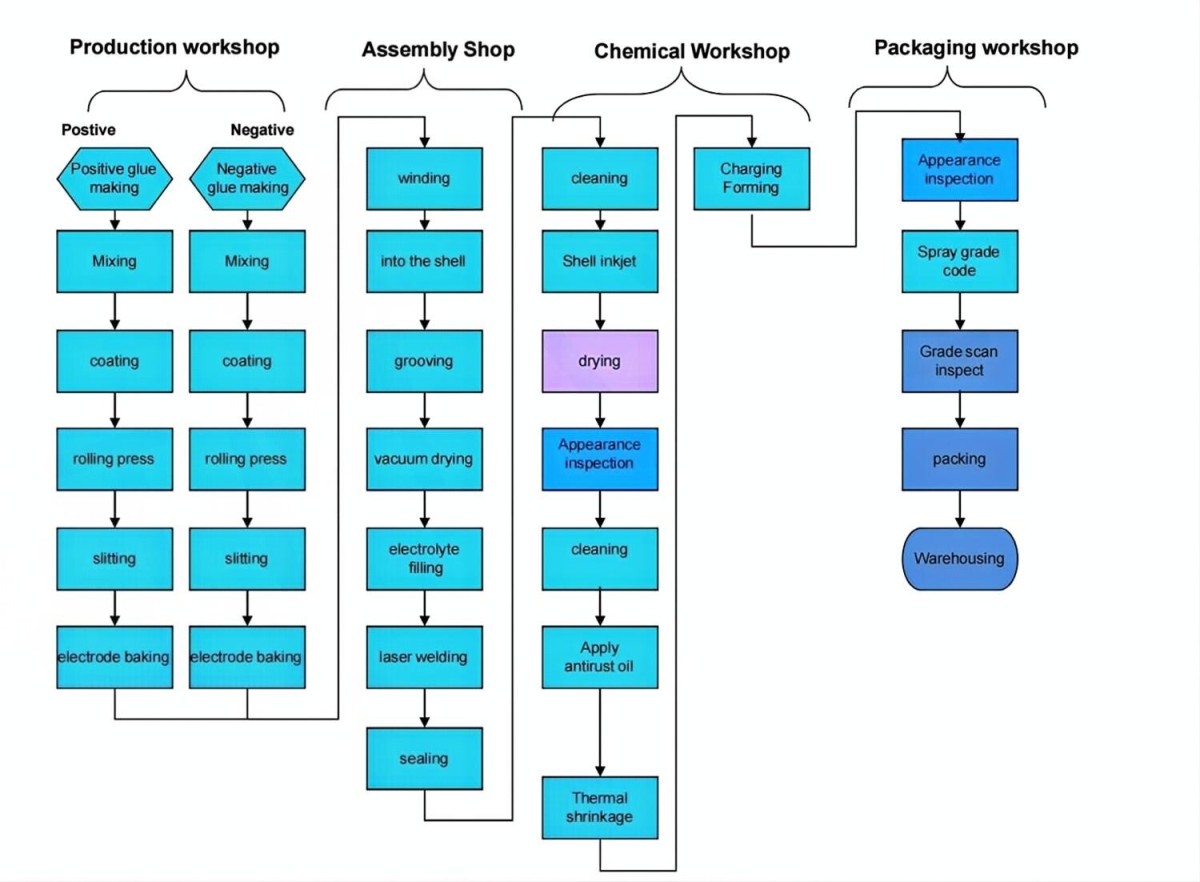

3：Process Flow:

4：Technical Specifications:

Vacuum drying oven with three-layer shelf heating module for raw material baking

Large planetary vacuum mixer with vacuum pump and chiller

Slurry viscosity test digital touch screen viscometer

Vacuum mixing turnover bucket (with flame lift)

Magnetic iron removal filtration battery electrode slurry magnetic iron removal filtration system

Electrode coating three roll battery electrode intermittent coating machine

Waste gas treatment solvent treatment system Waste gas treatment equipment

Roll to roll pressure control of roller press machine.

Cross cutting lithium battery electrode cutting machine for cutting large electrodes after battery coating

Electrode slice slitting machine for battery electrode slices

Lithium ion battery electrode sticking machine

Extreme Ear Welding Al Tab Ni Tag Ultrasonic Welding Machine

Fully automatic precision winding machine for electrode winding

Place the battery cell into the battery case and use a spot welding machine to weld the negative ear and negative case with a precision high-frequency inverter DC double pulse spot welding machine

Short circuit tester

The battery case is formed by rolling grooves for easy sealing. Batch processing of cylindrical battery castings using a floor standing automatic slotting machine

Cylindrical battery cap laser welding machine

Injecting electrolyte into cylindrical battery automatic precision electrolyte injection station

Sealed cylindrical battery box fully automatic cylindrical battery crimping machine

Battery Formation and Capacity Testing 512 Channel Lithium ion Battery Tester Equipment

Print numbers to cylindrical cells using a continuous small character inkjet printer

Remove moisture from the battery production process to ensure battery quality with a dehumidification and drying system

Vacuum integral rotary vane vacuum pump

Provide compressed gas screw compressors for each battery production machine

5：Technical Features:

Optimize the battery production process

Improve production capacity

Improve quality control

Realize intelligent production

6：Applications:

Experiment and research and development

Performance and security testing
